Manufacturing
Precision you can measure
Dari file CAD menjadi komponen jadi — cutting, bending, machining, welding, dan assembly di satu workshop.
Machine Capability
Mesin & spesifikasi

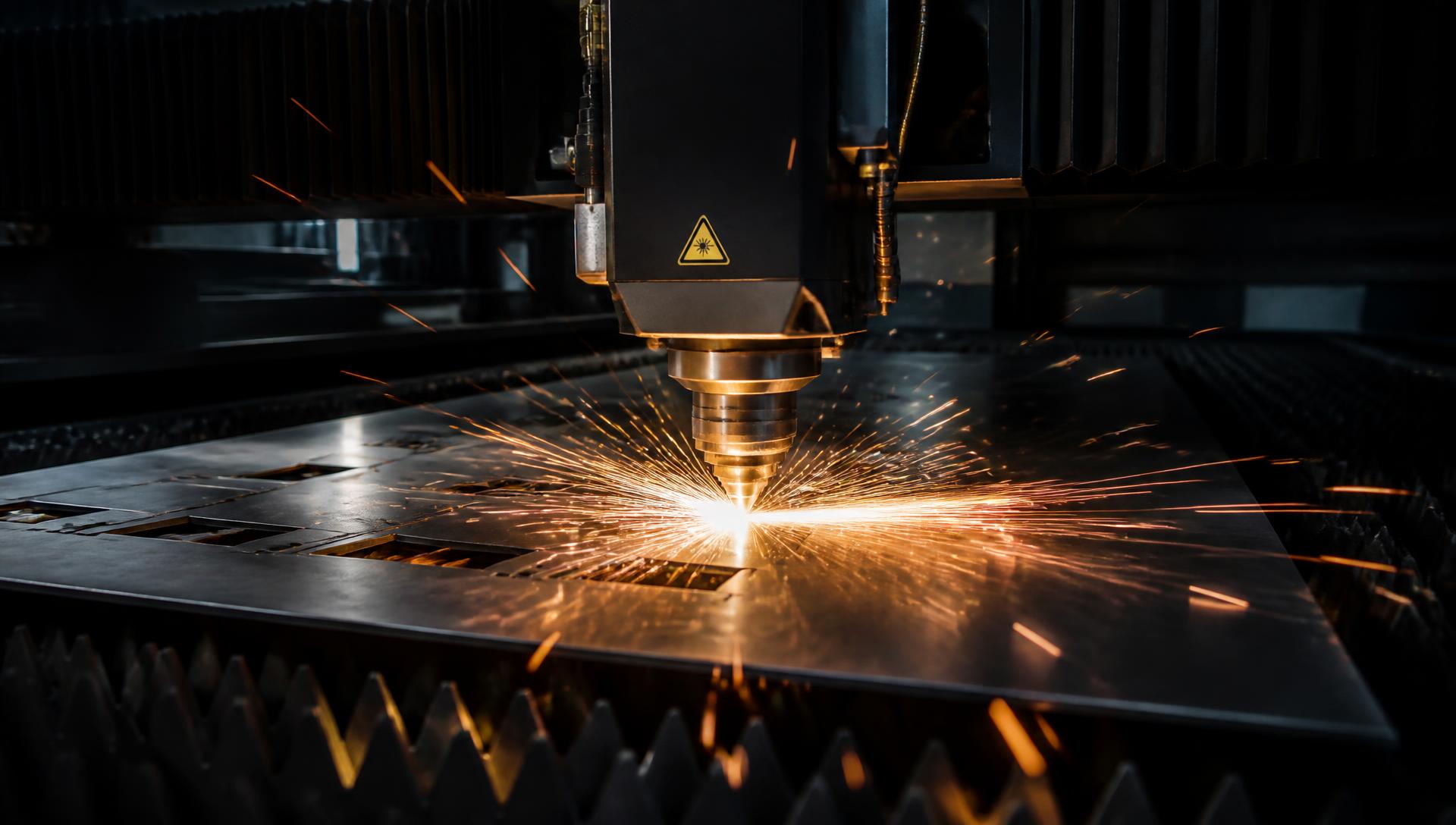

Fiber Laser Cutting
Pemotongan metal sheet presisi, bersih dan cepat.
- Power
- 1500 W
- Cutting Area
- 1500 × 3000 mm
- Materials
- Steel, Stainless Steel, Aluminum, Brass
- Max Steel Thickness
- Up to 16 mm
CNC Router Cutting
Cutting dan engraving material non-logam berukuran besar.
- Table
- 1500 × 3000 mm
- Spindle
- 5.5 kW
- Materials
- Acrylic, MDF, Plywood, material sejenis
CNC Plasma Cutting
Pemotongan pelat dengan kecepatan tinggi.
- Cutting Area
- 1500 × 3000 mm
- Power Source
- 100 A inverter
- Materials
- Mild Steel, Stainless Steel, Aluminum
Press Brake / Bending
Bending presisi untuk bracket, enclosure dan chassis.
- Capacity
- 50 Ton
- Bending Length
- 1250 mm
- Max Steel Thickness
- 6 mm
- CNC
- 2 Axis
CO2 Laser Cutting
Cutting dan engraving material non-logam tipis.
- Power
- 80 W
- Working Area
- 1300 × 900 mm
- Materials
- Acrylic, MDF, Plywood, Rubber
CNC Milling
Machining part presisi, jig dan fixture.
- Table
- 1200 × 600 mm
- Spindle Speed
- 8.000 rpm
- Axis Travel
- X 1200 / Y 600 / Z 600 mm
- Accuracy
- ± 0.015 mm (approx.)

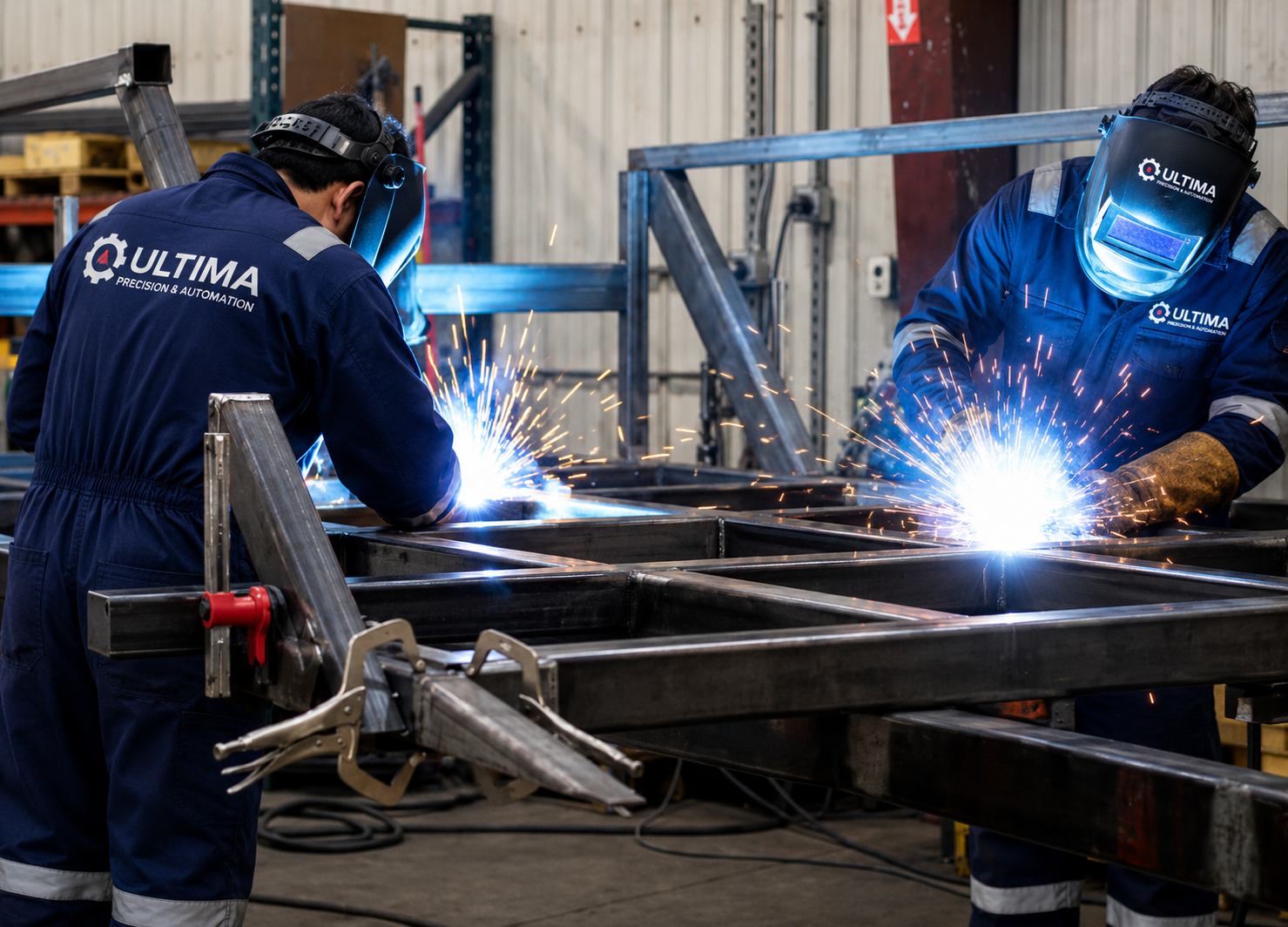

Welding & Fabrication
Fabrikasi, assembly dan repair struktur logam.
- Processes
- MIG, MAG, TIG, MMA
- Materials
- Steel, Stainless Steel, Aluminum
- Applications
- Fabrication, Assembly, Repair
Materials
Material yang kami proses
Steel
- Mild Steel
- Carbon Steel
- Alloy Steel
- Tool Steel
- High Tensile Steel
Stainless Steel
- SUS 304
- SUS 316
- SUS 201
- Others
Aluminum
- Aluminum Plate
- Aluminum Extrusion
- Aluminum Block
Other Materials
- Brass
- Copper
- Acrylic
- Plywood
- MDF
- Engineering Plastic
How It Works
Alur produksi
- 01
Upload Design
Kirim file CAD atau drawing Anda.
- 02
Select Process
Pilih proses manufaktur yang dibutuhkan.
- 03
Material & Quantity
Tentukan material, ketebalan dan jumlah.
- 04
Engineering Review
Tim engineering meninjau kelayakan produksi.
- 05
Quotation
Penawaran dikirim beserta lead time.
- 06
Production
Proses cutting, bending, machining, welding.
- 07
Quality Check
Inspeksi dimensi, material dan visual.
- 08
Delivery / Installation
Pengiriman atau instalasi di site Anda.
Quality
Quality control
Dimensional Inspection
- CMM
- Vernier
- Micrometer
- Caliper
Material Inspection
- Hardness Test
- Thickness Test
Welding Inspection
- Visual Inspection
- Dye Penetrant (PT)
Functional Test
- Assembly

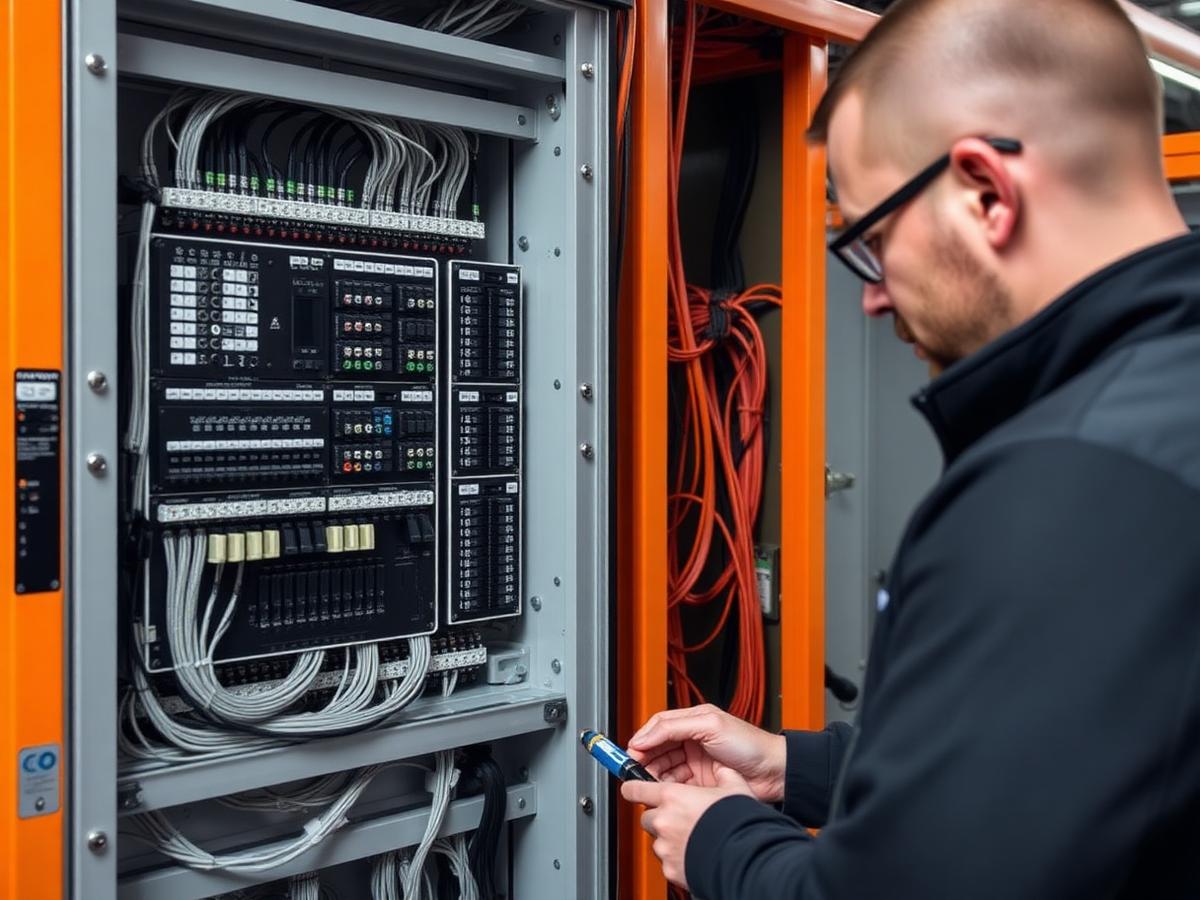

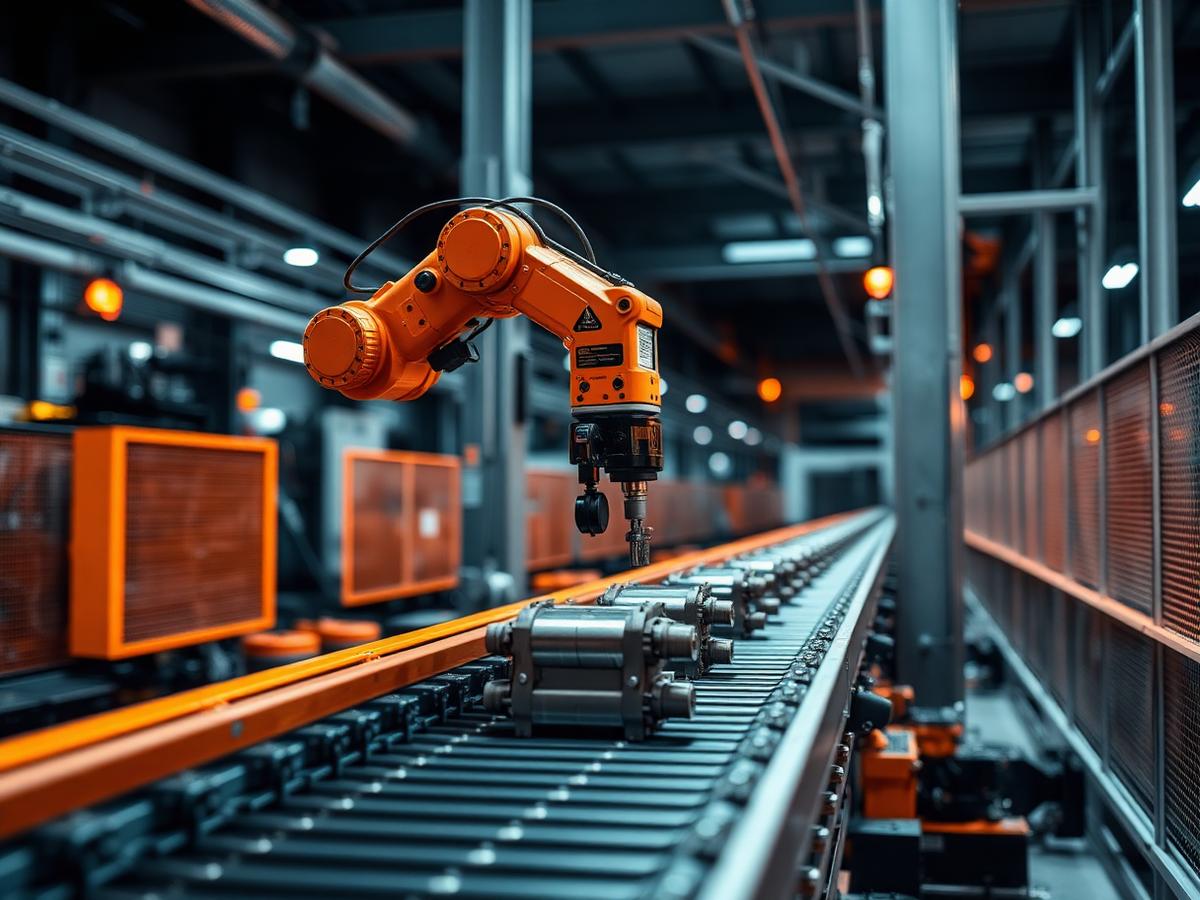

- Automation System
Quality Standards
- Customer Requirements
- Internal Quality Control
